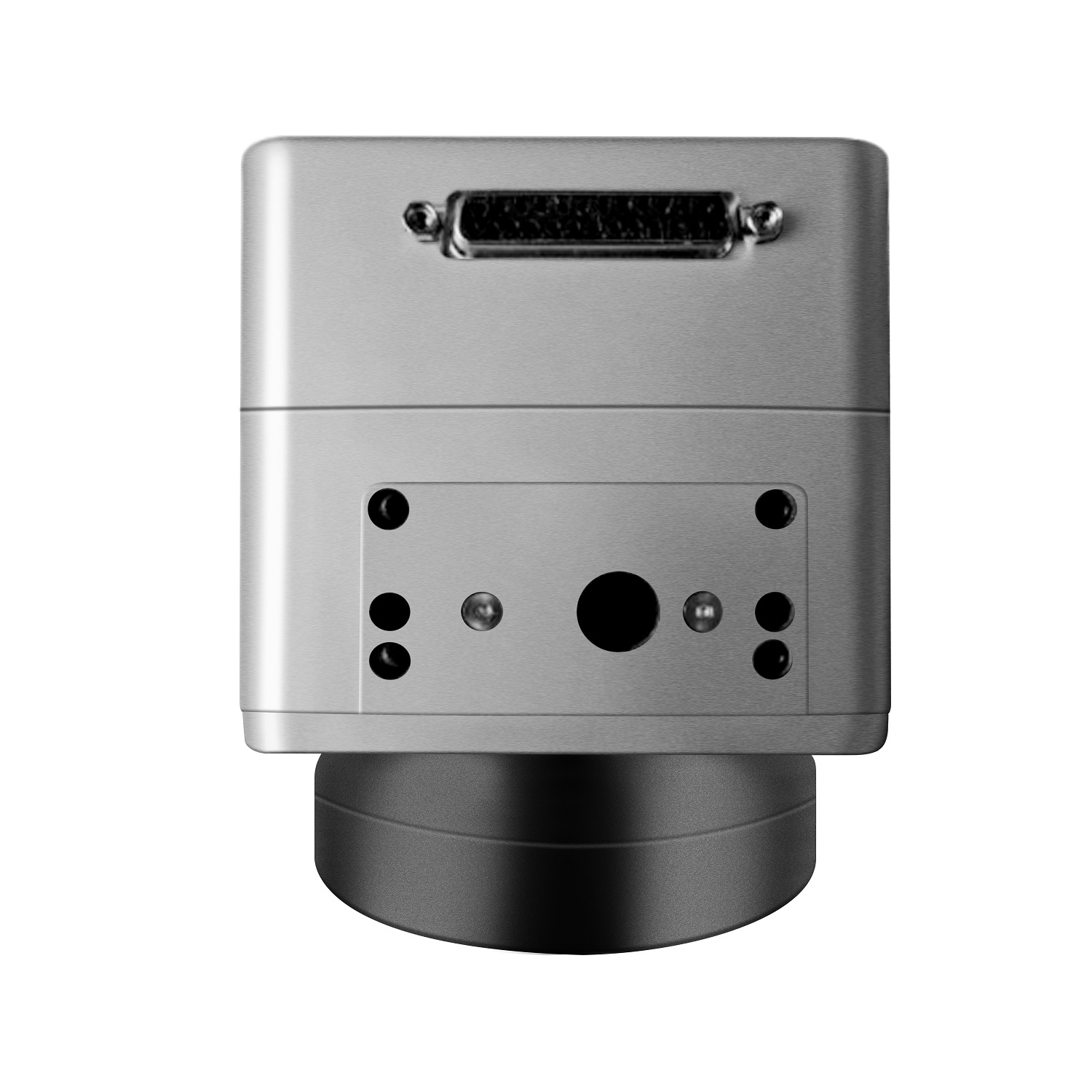

Cost-effective galvanometer scanner
EAOS04
EAOS04 galvanometer adopts the dynamic magnetic structure, combined with the industry‘s mature photoelectric sensing technology and analog control developed. It has the advantages of high cost performance, fast response speed, light weight and compact structure. Communication protocol for XY2-100, can be adapted to the industry‘s major mainstream cost-effective control cards such as LMC and RTC4. Applicable to a variety of lightweight, low-cost processing scenarios.
Order online
| Precision and Error | |
| Entrance Spot | 10mm |
| Marking speed (f=160mm) | 2000mm/s |
| Positioning speed (f=160mm) | 7000mm/s |
| Running Angular Velocity | 12.5 rad/s |
| Step response time (1% of full scale) | 350μs |
| Tracking error | ≤116μs |
| Repeatability | ＜8μRad |
| linearity | 99.90% |
| Moment of inertia g*cm²±10% | 0.25 |
| Long time drift (8 hours of continuous operation) | ＜0.5mRad |
| Moment constant, ±10% | 0.7*10⁵ (dyne.cm/amp) |
| Gain drift | ＜50PPM/℃ |
| zero drift | ＜15μRad/℃ |
| Laser Package | |
| Maximum pulsed laser power | 100W |
| Lens reflective wavelength | 1064nm/355nm/10.64um/532nm |
| Power & Signal | |
| Input voltage | ±15VDC |
| Rated current | 2A |
| Peak current | 10A |
| Maximum average operating current (single axis) | 0.5A |
| Interface protocol | XY2 -100 |
| Mechanical scanning angle | ±12.5° |
| Temperature, size | |
| Operating temperature | 10℃ ~35℃ |
| Size of galvanometer (L×W×H) | 97×114×91mm |
| Weight | About 0.7kg |
