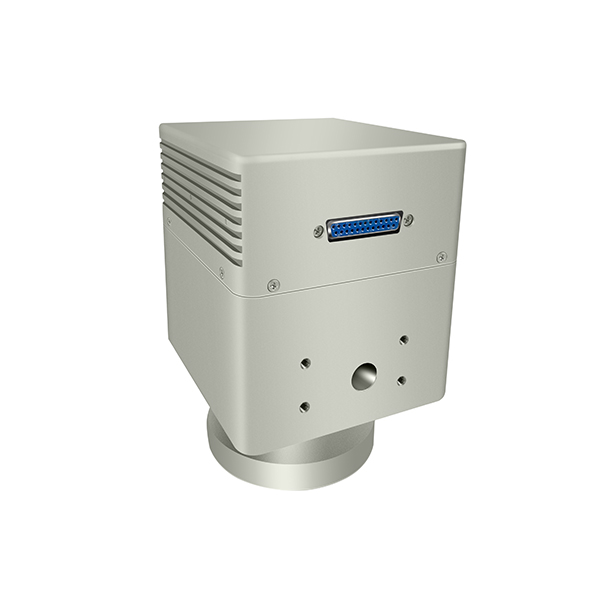

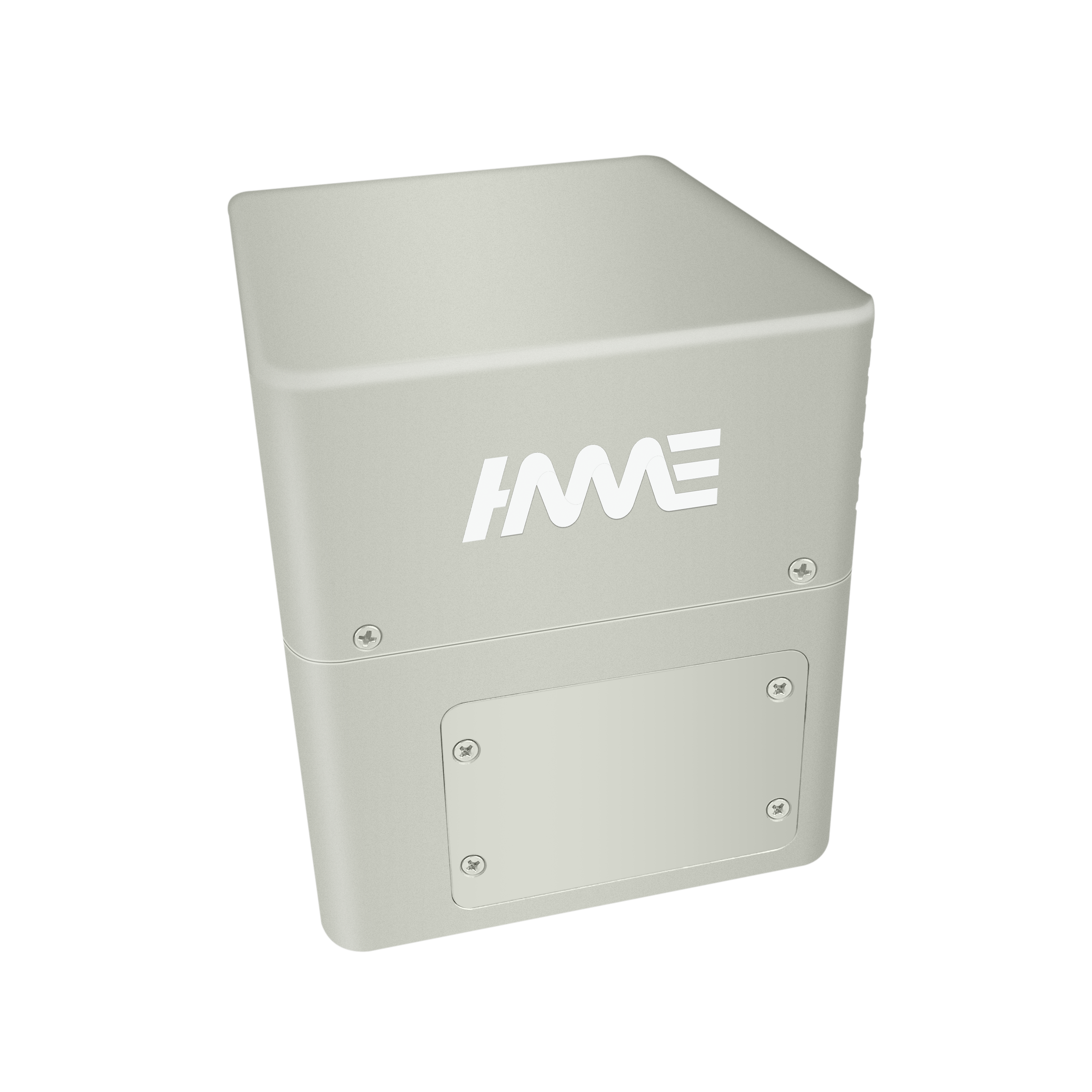

High performance galvanometer scanner
ODVS05
ODVS05 series galvanometer scanners adopts digital sensing & digital control, which has the advantages of high precision, fast response and anti-interference. Compatible with XY2-100, SL2-100 and other command communication protocols, can be adapted to RTC, Golden Orange and other major mainstream control cards in the industry. Suitable for a variety of refined, high-efficiency application scenarios. The product can reflect 355nm, 1064nm and other wavelengths of laser according to the need.
Order online
Input Aperture (mm) | 10 | 12 |
Beam Displacement (mm) | 6.67 | 6.67 |
Tracking Error (ms) | 0.115 | 0.138 |
Repeated Positioning Accuracy (µrad) | ＜1 | ＜1 |
Zero Drift (µrad/K) | ＜15 | ＜15 |
Gain Drift（ppm/K) | ＜8 | ＜8 |
Long-term drift over 8 hours (mrad) | ＜0.1 | ＜0.1 |
1% Of Full Scale (ms) | 0.26 | 0.28 |
10% Of Full Scale (ms) | 1.128 | 0.81 |
Positioning Speed (m/s) | 25 | 20 |
Typical Scan Angle (°) | ±22 | ±22 |
| Scanning Speed (mm/s) | <6000 | <5000 |
Fine Processing Speed (rad/s) | 37.5 | 31.25 |
Zero Offset (mrad) | <5 | <5 |
Nonlinearity (%) | <0.1 | <0.1 |
Power Requirements | ±15VDC, ≥3A | ±15VDC, ≥3A |
Communication Protocol | XY2-100 /SH2-100(20bits) | XY2-100 /SH2-100(20bits) |
Operation Temperature (℃) | 25±10 | 25±10 |
